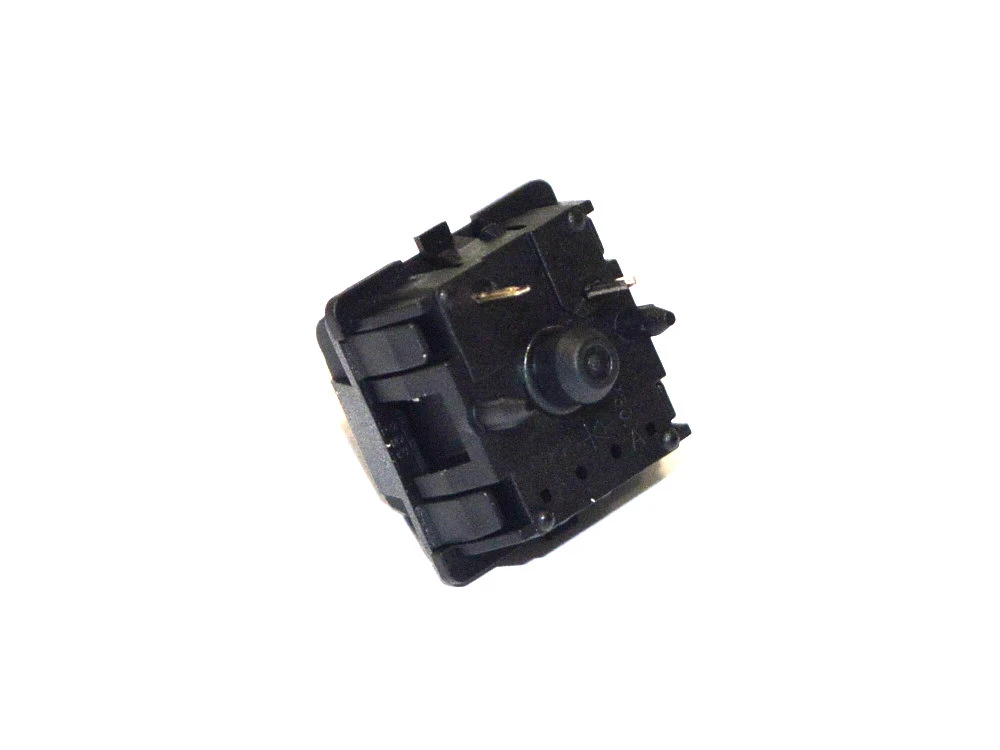

CHERRY MX Brown Tactile PCB Mount Switch Set 110

CHERRY MX Brown Tactile PCB Mount Switch Set 110 - Image 2

CHERRY MX Brown Tactile PCB Mount Switch Set 110 - Image 3

CHERRY MX Brown Tactile PCB Mount Switch Set 110

Original price was: $52.80.Current price is: $36.96.

SKU: MX1A-G1NWx110 Categories: Accessories, Switches

Your questions, our prompt answers.
100% High-Quality Guarantee
Protect Your Wallet with Safe Payments
Expertly Sourced, Quality Guaranteed

Description
Reviews (0)

CHERRY MX Brown Tactile PCB Mount Switch Set 110 – MX1A-G1NWx110

Electrical characteristics
Switching voltage		12 V AC / DC max.
Switching current		10 mA AC / DC max.
Dielectric strength		500 V / 50 Hz
Durability at 5V, 1mA		50,000,000

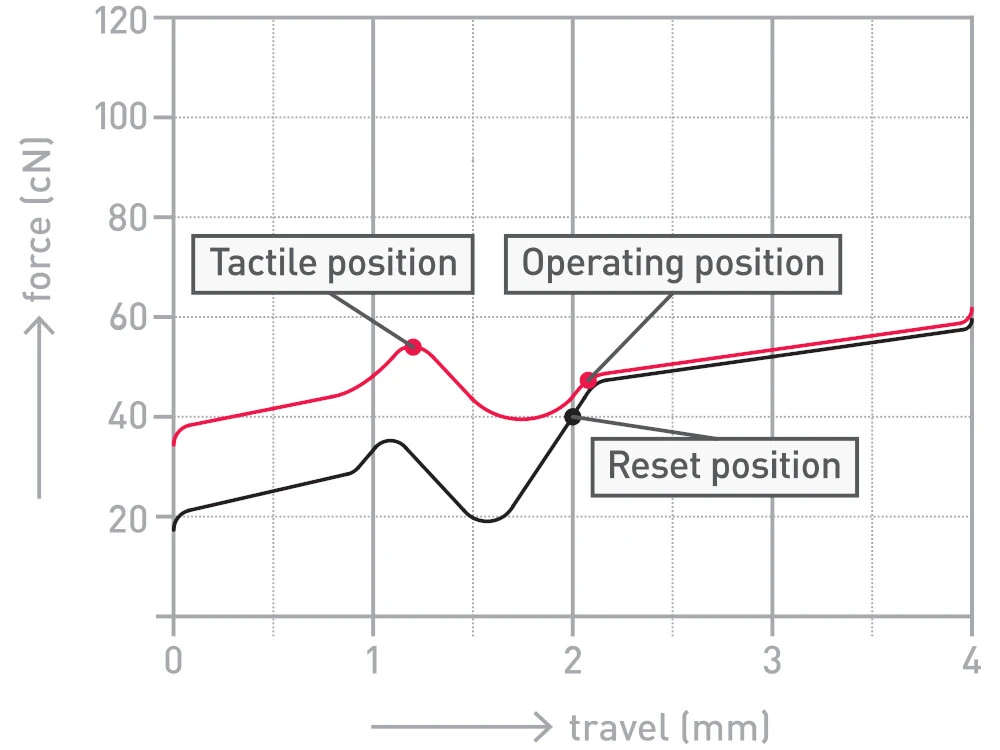

Mechanical characteristics
Contact configuration		Single-pole contact
Action		Ergonomic
Actuator travel		4 ± 0.5 mm
Pretravel		2 ± 0.6 mm
Initial force		25 cN min.
Actuation force		45 ± 20 cN
Pressure point force		55 ± 20 cN
Bounce time during actuation with 0.4 m/s		<5 ms
Standard lead spacing		19.05 mm (16 mm min.)
Fastening		Fixing pins in the printed circuit board
Materials
Insulation materials		Thermoplastics (min.UL 94 HB)
Spring		Stainless steel
Contacts		High-quality gold alloy
Other Characteristics
Protection class		IP 40
Operating temperature		-10 °C to +70 °C
Storage temperature		-40 °C to +70 °C
Humidity (without condensation)		5 % to 95 %
