CHERRY MX Red Soft Linear Plate Mount Switch Set 90
Original price was: $43.20.$30.24Current price is: $30.24.
- Your questions, our prompt answers.
- 100% High-Quality Guarantee
- Protect Your Wallet with Safe Payments
- Expertly Sourced, Quality Guaranteed
CHERRY MX Red Soft Linear Plate Mount Switch Set 90 – MX1A-L1NNx90
| Electrical characteristics | ||
| Switching voltage | 12 V AC / DC max. | |
| Switching current | 10 mA AC / DC max. | |
| Dielectric strength | 500 V / 50 Hz | |
| Durability at 5V, 1mA | 50,000,000 | |

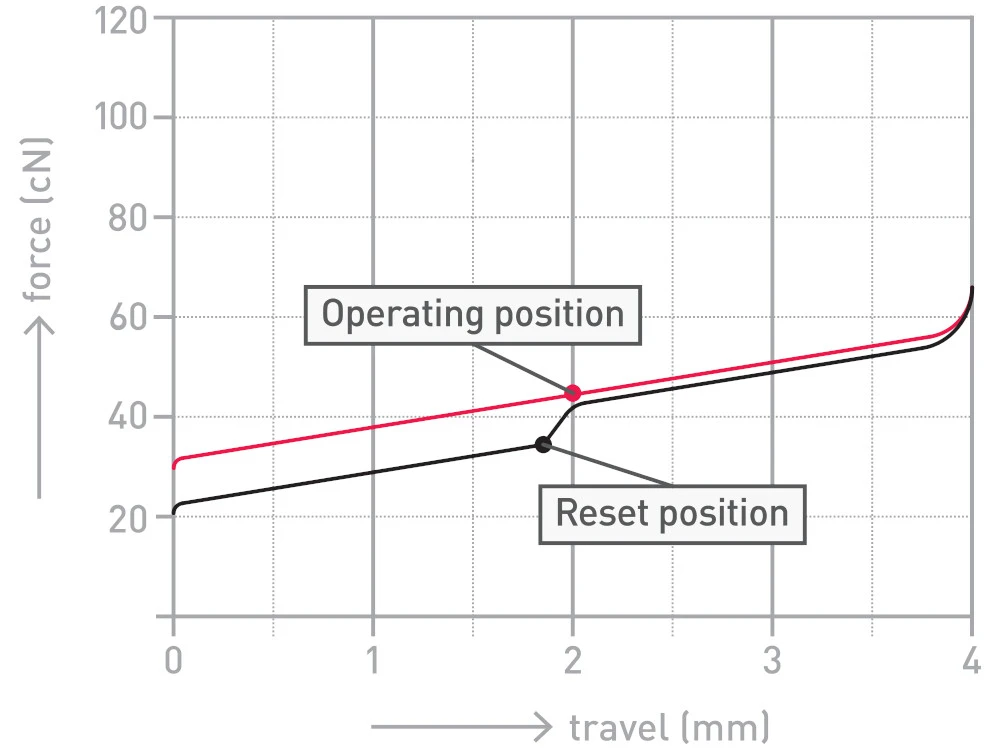

| Mechanical characteristics | ||
| Contact configuration | Single-pole contact | |
| Action | Linear | |
| Actuator travel | 4 ± 0.5 mm | |
| Pretravel | 2 ± 0.6 mm | |
| Initial force | 25 cN min. | |
| Actuation force | 45 ± 20 cN | |
| Pressure point force | NA | |
| Bounce time during actuation with 0.4 m/s | <5 ms | |
| Standard lead spacing | 19.05 mm (16 mm min.) | |
| Fastening | Snap fastening in frame | |
| Materials | ||
| Insulation materials | Thermoplastics (min.UL 94 HB) | |
| Spring | Stainless steel | |
| Contacts | High-quality gold alloy | |
| Other Characteristics | ||
| Protection class | IP 40 | |
| Operating temperature | -10 °C to +70 °C | |
| Storage temperature | -40 °C to +70 °C | |
| Humidity (without condensation) | 5 % to 95 % | |
CHERRY MX Red Soft Linear Plate Mount Switch Set 90 – MX1A-L1NNx90
Part Number
MX1A-L1NNx90
Connection
Without fixing pins
Number of keys/buttons
90
Switch Type
CHERRY MX Red
Length
16 mm
Depth
16 mm
Height
19 mm
Weight
150 g
Compatible
Filco keyboards
Gross Weight
160 g
