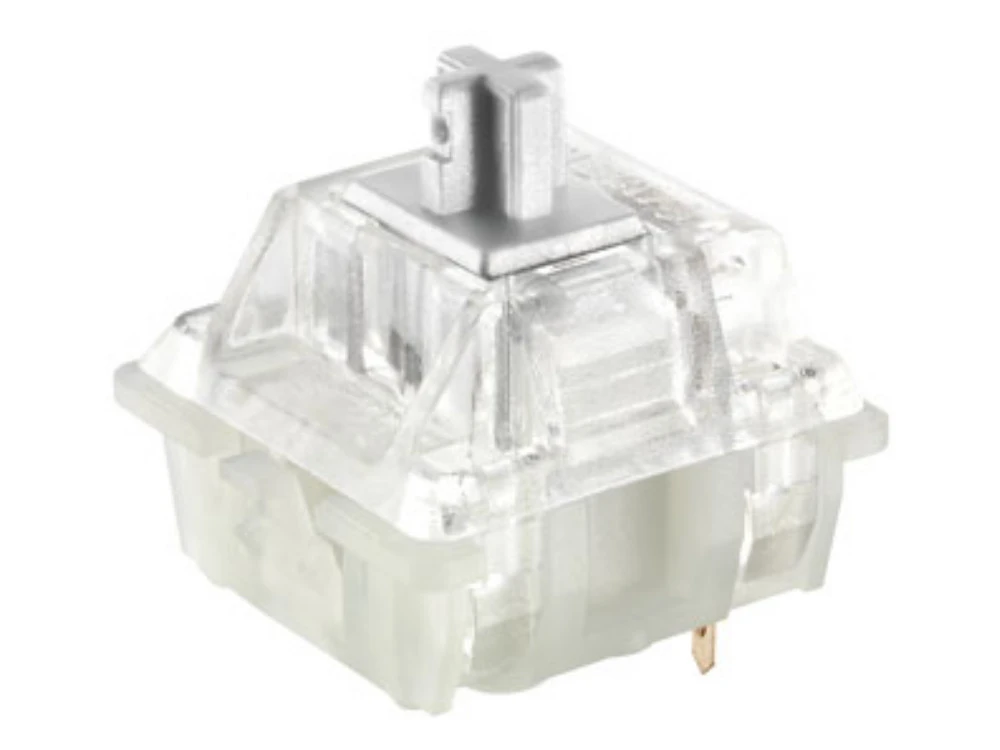

CHERRY MX2A RGB Speed Silver Linear Plate Mount Lubed Switch Set 110

CHERRY MX2A RGB Speed Silver Linear Plate Mount Lubed Switch Set 110 – MX2A-51NAx110

Original CHERRY MX is the world’s leading precision technology for mechanical key switches. The CHERRY Gold Crosspoint contact concept and the unprecedented production quality “Made in Germany” are unique. The MX2A series introduces a new level typing experience, setting a new standard for mechanical key switches.

Key benefits

• Engineered and Made in Germany
• CHERRY MX2A Speed Silver switch: Fast, linear actuation without pressure point with minimal resistance
• Factory-applied, premium-grade lubricant
• Noise-reducing barrel spring design
• Unique, spring-centering stem
• Diamond polished stem and spring guidance
• Glide-optimized stem guidance ribs
• Short bounce time for high switching frequency(such as for fast typing)
• Self-cleaning contacts
• Switch resistant to dust and dirt
• Over 100 million keystrokes with no loss of quality guaranteed

Keymodule

• Switch Type: MX Mechanical Switch
• Mechanical Fastening: Snap fastening in frame(3 Pin)
• Connection type: Soldered or hot-swappable
• Protection class: IP40

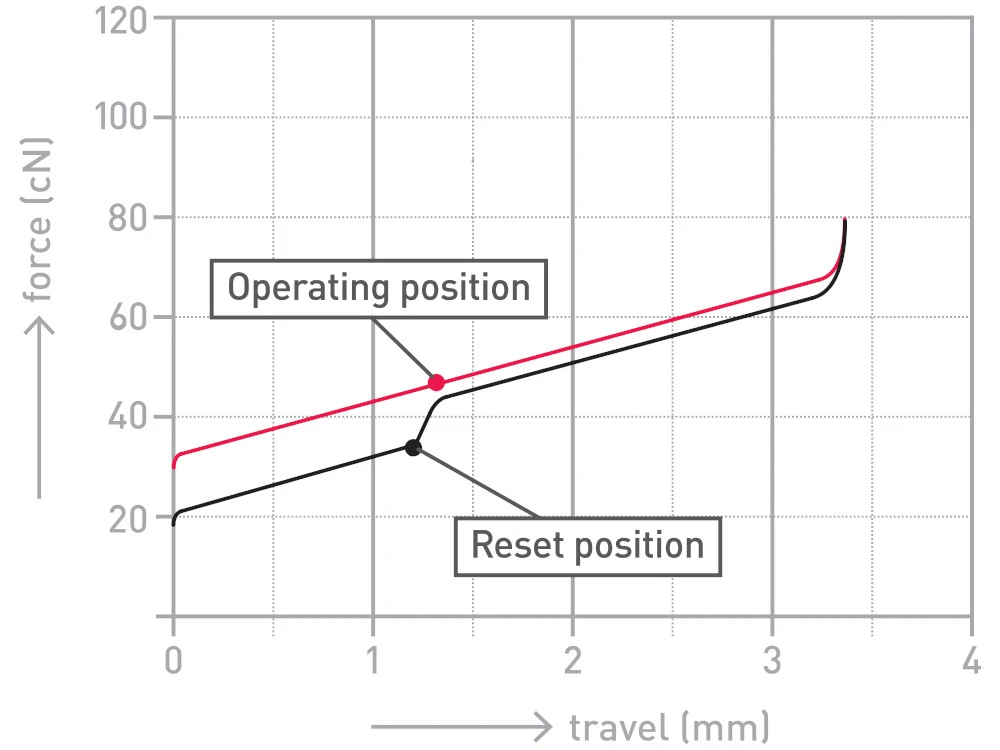

• Operation characteristics: Linear, Fast actuation
• Switching voltage: 5V
• Durability: > 100 million actuations
• Contact configuration: Single-pole contact
• Actuator travel: 3.4mm
• Pretravel: 1.2mm
• Initial force: 30cN
• Actuation force: 45cN
• Bounce time: typ. <1ms
• Lighting: SMD LED can be mounted directly on the PCB (not included in the module), opening for SMD LED in the base
• Spring: Stainless steel
• Contacts: High-quality gold alloy
