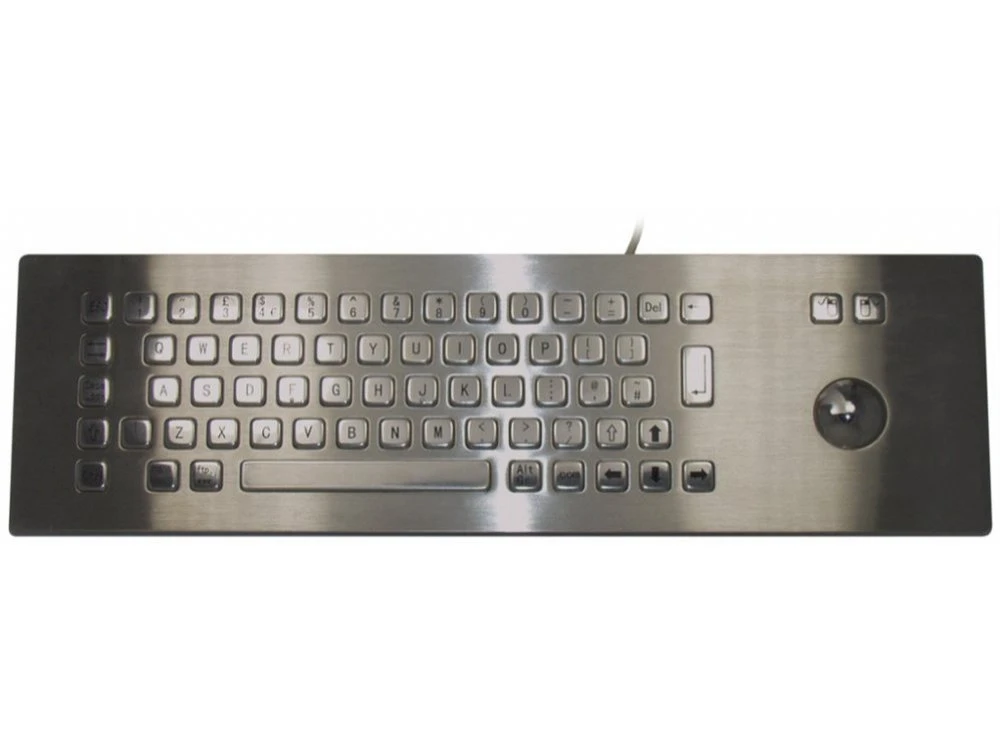

Stainless Steel IP65 Panel Mount Industrial Trackball Keyboard – Over Panel

Stainless Steel IP65 Panel Mount Industrial Trackball Keyboard – Over Panel – KBC-299B-2

The keyboard is designed to be panel mounted and has 8 M4 screw studs mounted on the under side of the front fascia (The IP65 rating will be dependant on the seal between the keyboard and your panel/enclosure, M4 nuts not included).

Dimensions:

• Front Panel: 431 x 126mm
• Diameter of trackball: 38mm

Features:

• 65 keys stainless steel panel mounting keyboard with trackball
• Carbon-on-Gold key switch technology (silicon gel)
• Waterproof and dustproof
• Very rugged vandal proof design
• Can be cleaned with soapy water, disinfectant or other cleaning agents

Applications:

• Check-in Kiosk, Info-Kiosk, Internet Kiosk, Medical Kiosk, Industrial Control Platform and Gaming Machine.

Material:

• Front Panel: High quality 304 stainless steel
• Keys: High quality 304 stainless steel
• Trackball: High quality 304 stainless steel
• Back panel: Aluminum alloy

Mechanical Data:

• Key trip: 1.5mm
• Key pressure: 0.8～1.6 N
• Lifespan: >2 million operations per key
• Gross Weight: 1.8 KGS

Electrical Data:

• Input Voltage: 5.0VDC±5%
• Electric Current: 10mA
• EMC Emission: EN55022
• ESD Standard: Air Discharge 8KV; Contact Discharge 6KV

Environmental Adaptability:

• Operating Temperature: 0°～+60°
• Storage Temperature: -25°～+80°
• Relative humidity: 30%～90%
• Atmospheric pressure: 60～106 KPa

Reliability：

• MTBF: >20,000 hours
• MTTR: < 30 minutes
• CE, FCC, RoHS, ESD compliant
• Waterproof and Dustproof class: IP65 (front panel)
• Vandal resistant class: IK07
